Description
Topwisdom TL-A4S is the latest generation of laser engraving and cutting motion control system: 4 axes and 2 lasers, a 4.3″ colour screen, fast and stable network and USB transfer. It works with AutoLaser software, supports export from CorelDraw, AutoCAD and Illustrator, and can be customised.
Power and size
- power supply DC 24 V / 2 A;

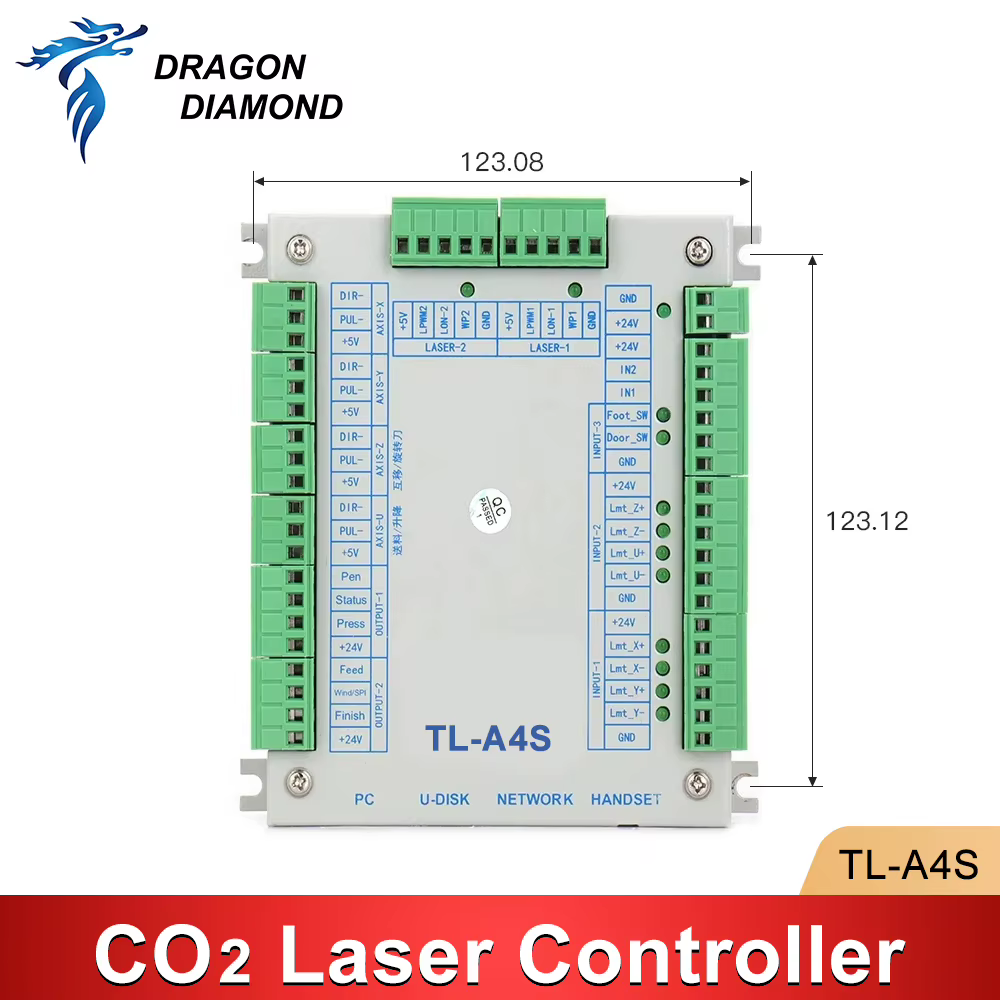

- controller: 123.1 × 123.1 mm;

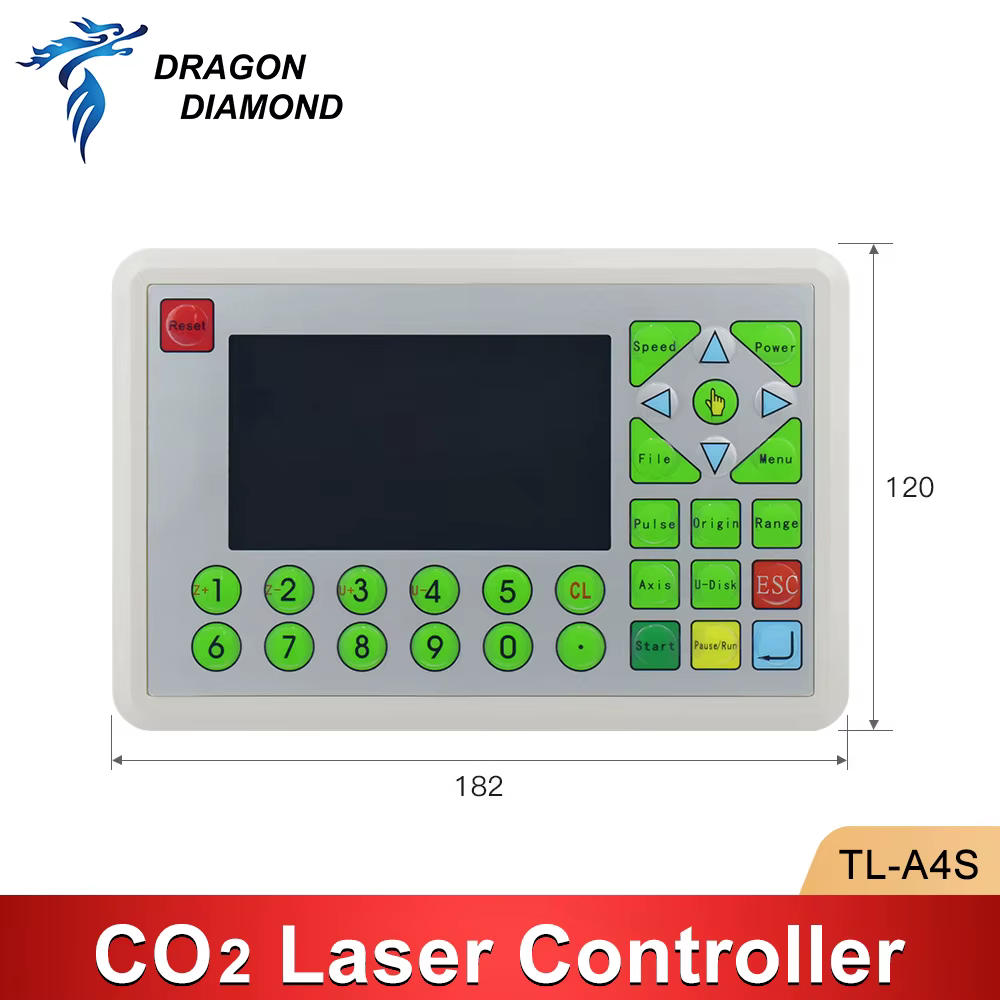

- panel: 182.0 × 120.0 mm (front), 145.5 × 100.8 mm (rear).
Main features
- high-performance 32-bit floating-point ARM, 128 MB Flash, 512 KB RAM, 6 general outputs, 12 general inputs, TTL levels;
- 4.3″ 480×272 LCD;
- 4-axis motor control: X and Y for horizontal motion, Z for rotary cutter lift or synchronous double-head movement, U for feeding or table lift; pulse frequency up to 166 kHz;
- 7-segment S-curve acceleration and deceleration with adaptive speed planning, one-button small-circle speed limit, different cutting parameters per graphic, backlash compensation;
- control of 2 lasers: TTL level, control voltage 0–5 V, PWM 1–100 kHz, duty cycle 0–100 %;

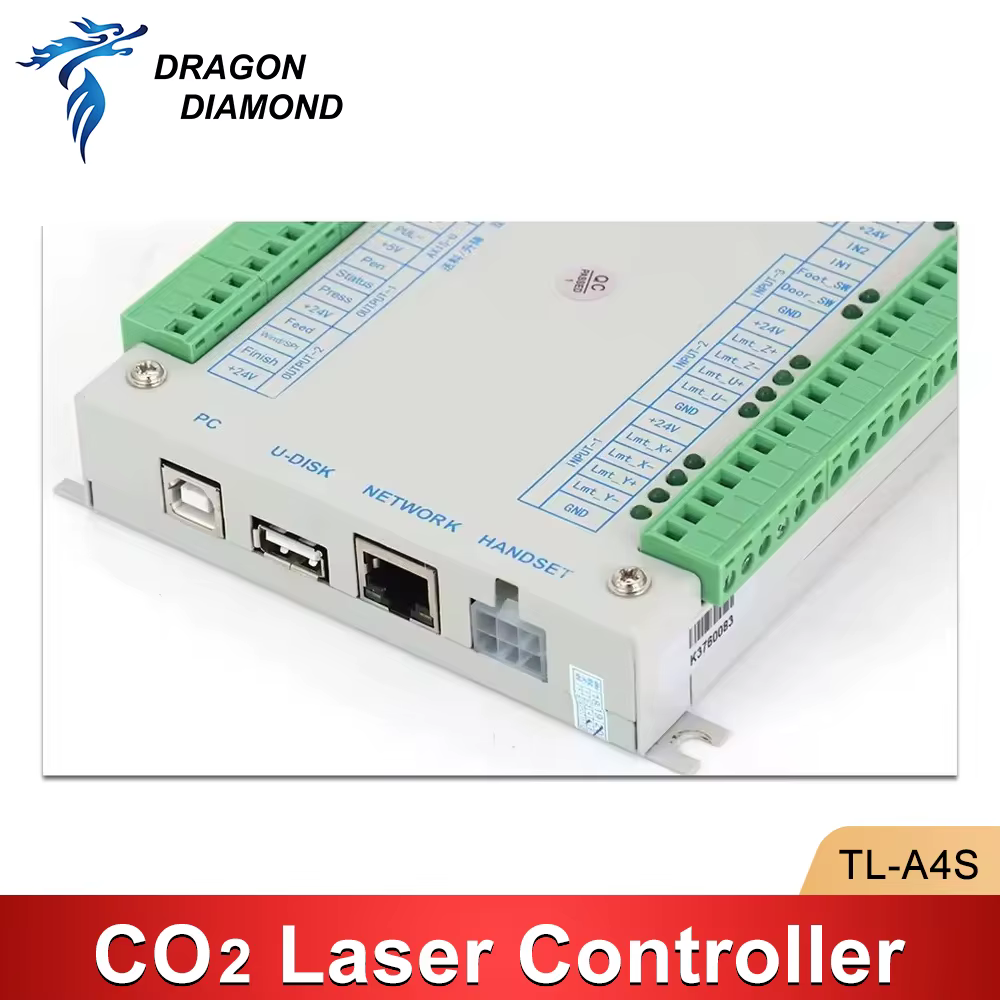

- USB 2.0: computer connection, USB flash drive read/write;
- 100 Mbps network;
- real-time clock, machine lock;
- double-head modes: two heads on one belt or on two belts;
- rotary cutting, mark-positioning cutting, rotary cutting height compensation, pressure feed roller control;
- track preview, resume engraving after power-off, real-time power and speed adjustment, rotary engraving, switching between 2 tables, split feeding, pressure feeding, automatic air assist, autofocus, foot switch, safety protection, firmware upgrade, job statistics;
- interface languages: Chinese (simplified and traditional), English, Korean, Russian, Italian, Spanish, Portuguese, Vietnamese and others.
Package contents
- TL-A4S controller;
- TL-A4S panel;
- cables: square-port USB cable — 1, PC extension cable — 1, USB flash drive extension cable — 1, crossover network cable — 1, network extension cable — 1, panel communication cable — 1;
- stamped mounting parts — 1 set.
